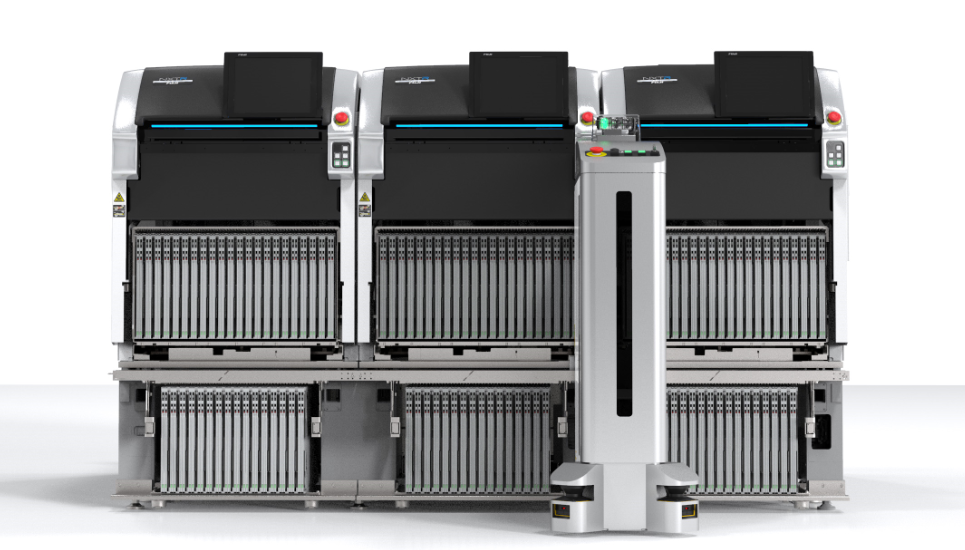

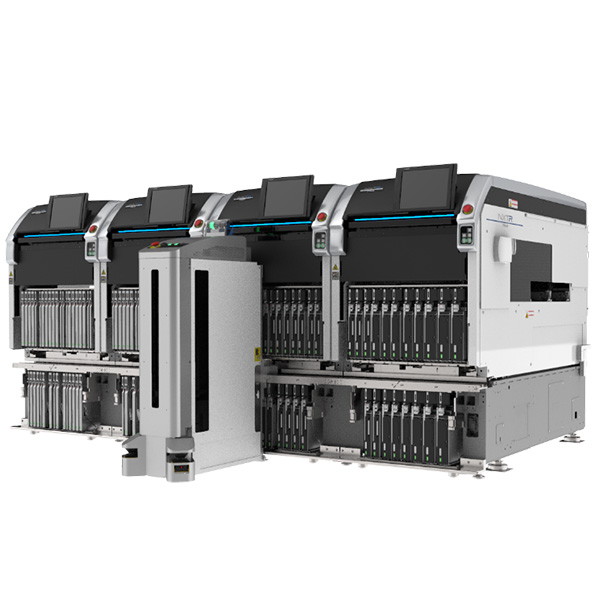

FUJI NXT-R SMT Machine
NXT-R Heads
NXT-R A Moedel
NXT-R A Model

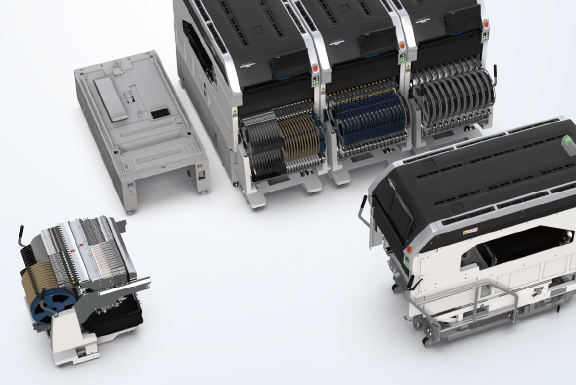

Modular concept

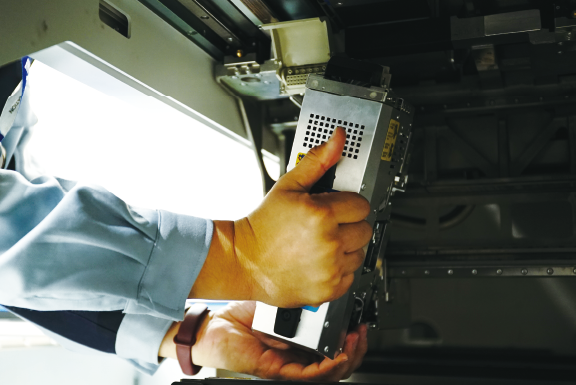

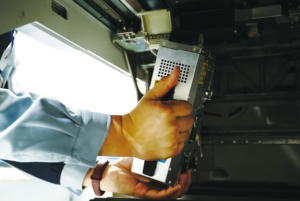

Fuji’s original compact lightweight heads can be easily exchanged without using tools. This allows operators to perform maintenance and troubleshoot unexpected problems.
The quantity of robots per module and types of heads used can be selected to match your product,
giving you the optimal production equipment.
You can select the optimum supply units to match the production type and parts used.
Feeders and other supply devices from other Fuji products you may have can also be used, encouraging efficient use of the units in your assets.
Additional investment can be made on the scale of single modules.
You can gradually increase the production capacity to the necessary extent with minimal investment for each.
Support for various production types

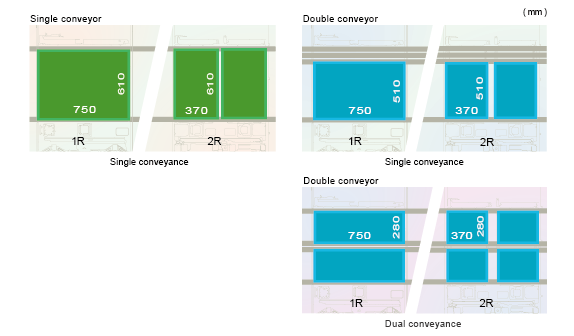

Expanded conveyable panel size
From large panel production to highly-efficient production of producing panels in the same size, NXTR line configurations are capable of supporting a greater variety of production.

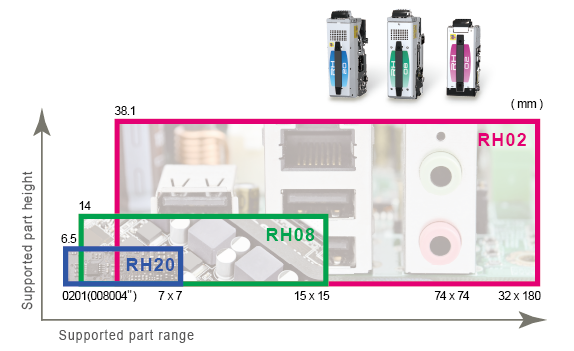

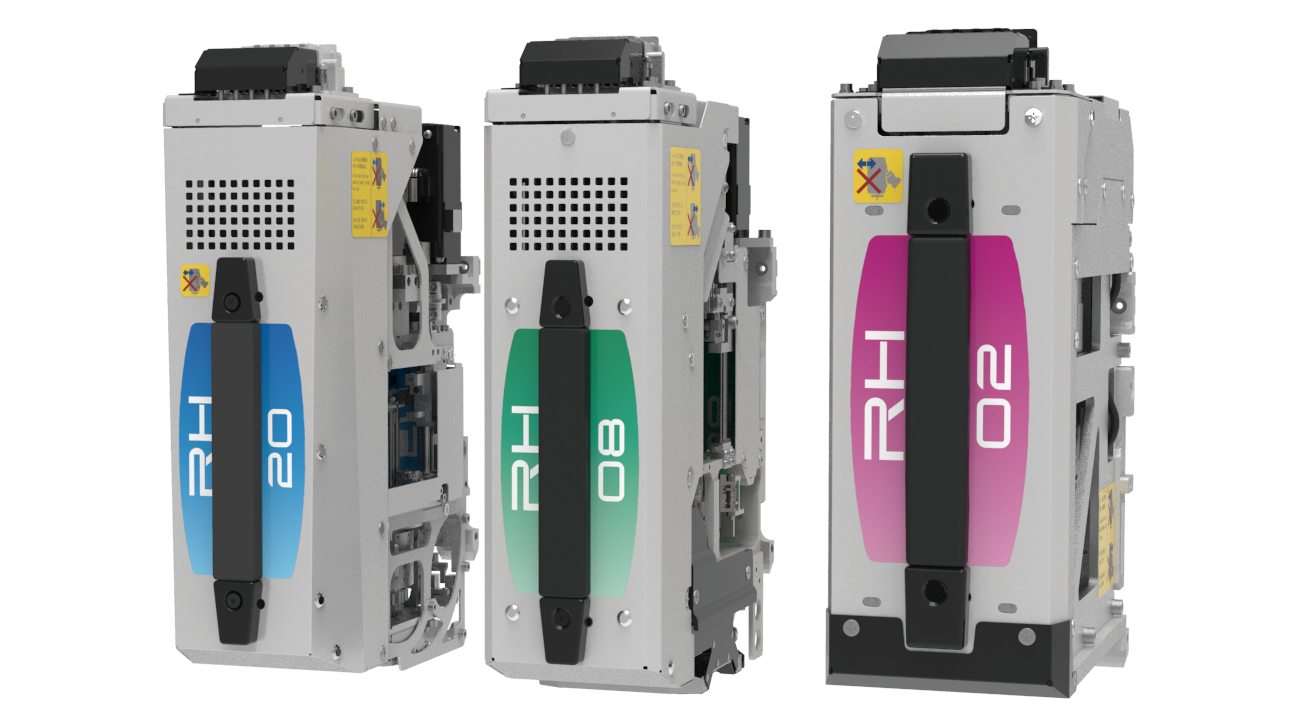

Heads that demonstrate strong capability in production
The three newly-developed heads are capable of handling an expanded part range.
They contribute to line balancing and flexible production without drops in production rates even when a different set of parts is used in the next production.

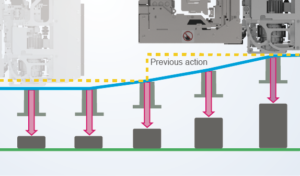

Optimal placement actions tailored to the part

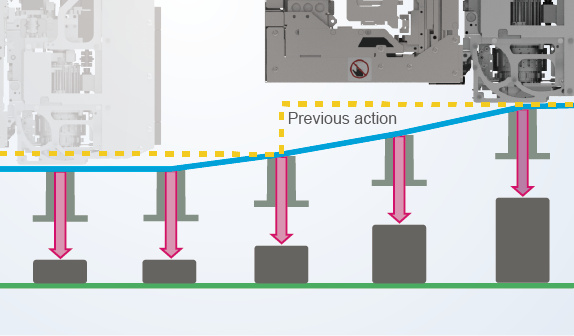

Operation can be optimized in various ways to suit the part being placed, such as by selecting stable and optimal operation speeds and streamlining Z direction strokes in view of the part height.
In addition to making it possible to support various parts, this also improves cycle time as well.– Multi-level transfer speed Shortest Z stroke control

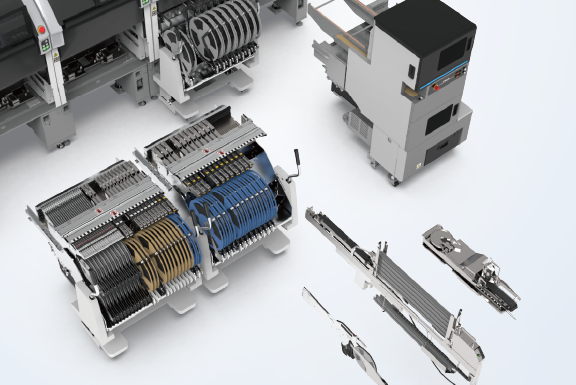

Supports high-mix production

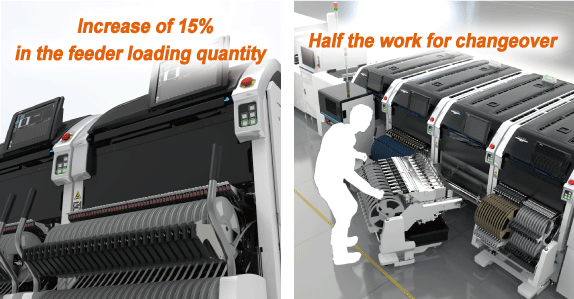

Increase of 15% more feeders can be set versus previous machines.
In addition, the feeder changeover work can be reduced by half with batch feeder exchange because an MFU unit is used for the parts supply unit.
This contributes to improved machine availability.

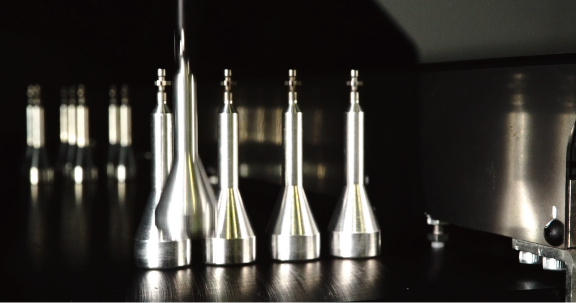

Automatic pin allocation even for soft backup pins
The appropriate hard-type or soft-type backup pins are allocated automatically.
This function is an effective measure to reduce work and prevent mistakes during changeover.
– Program-based positioning
Support for evolving placement processes

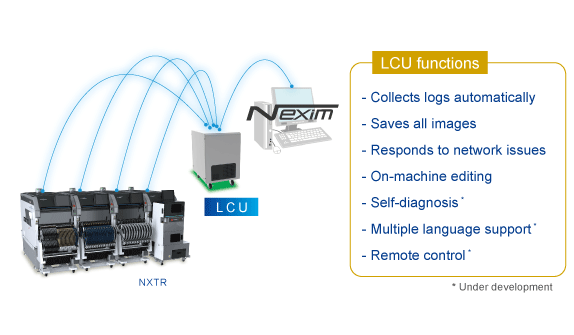

By automatically saving logs and image data, signs of issues that would cause machine stops and information that would lead to problem solving is not missed, leading to faster recovery times.
Network conditions are monitored constantly, which prevents production stops associated with network issues from occurring.

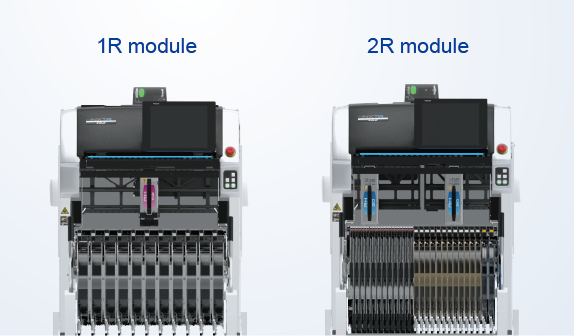

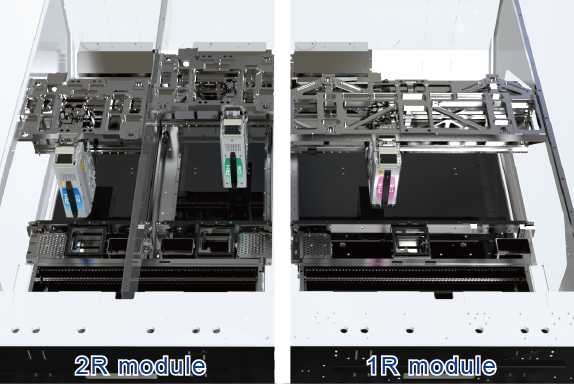

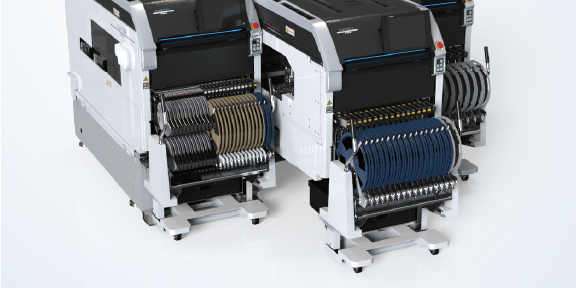

The most appropriate modules can be selected from the two module types based on the panel size and quantity of feeders to set.
It is possible to change modules after the line has been set up.
Pulling forward the module opens up access to the inside the machine with ease from both sides. This makes it possible to exchange heads and other units and perform maintenance work with a comfortable posture.

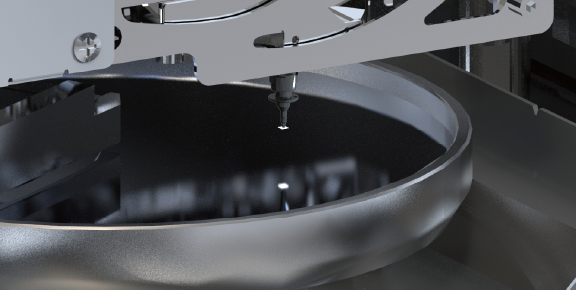

The high-speed type dip flux unit transfers flux onto the bumps of small parts. This leads to high-speed placement.
