Malcom RCX-1 Modular Reflow Checker | SMT Reflow Profiler

Malcom RCX-1 Reflow Checker | PCB Temperature Profiler

Reflow Profile Measurement System

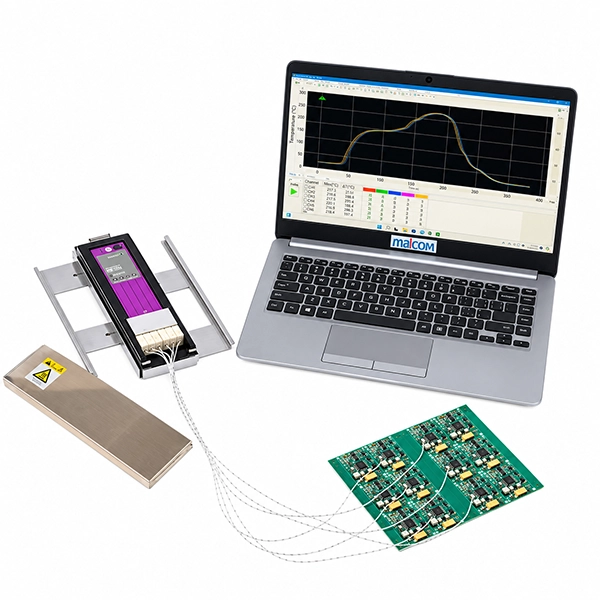

The Malcom RCX-1 Reflow Checker is a modular temperature-profiling and process-monitoring system designed to evaluate thermal conditions during PCB assembly and soldering processes. It records temperature data as the heat-resistant memory unit travels through a Reflow Oven with the PCB under measurement. Once the measurement is complete, the recorded data can be transferred to a computer for temperature-profile analysis.

The RCX-1 is built around the RCX-S memory unit, which supports up to six thermocouple measurement points. Its adjustable sampling interval allows engineers to select the data acquisition frequency required for different profiling tasks, while the built-in memory stores up to 20 profiles for repeated measurements and process comparisons.

SMT Process Monitoring Equipment

Beyond temperature measurement, the RCX-1 platform supports optional modules for monitoring oxygen concentration, air velocity, substrate vibration, and other process conditions. Depending on the selected configuration, these capabilities help production and process engineers investigate soldering defects, evaluate Reflow Oven performance, and establish more consistent process conditions.

The Malcom RCX-1 is suitable for electronics manufacturers that need reliable thermal profiling, process validation, troubleshooting, and ongoing monitoring of SMT soldering operations.

Key Features of Malcom RCX-1

The standard RCX-S memory unit supports temperature measurement at up to six points using JIS-K thermocouples. This allows engineers to monitor thermal conditions at selected locations on a PCB during the Reflow process.

The system supports a measurement range of 0–500°C, with a specified temperature accuracy of ±1°C. Thermocouple and reference-junction errors are excluded from this accuracy specification.

The sampling interval can be selected from 0.05, 0.1, 0.2, 0.5, 1, 2, 4, or 8 seconds, with arbitrary setup supported. This provides flexibility when capturing temperature changes across different process conditions.

The RCX-1 can store up to 20 measurement profiles in its memory unit. This helps reduce the need to transfer data to a computer after every measurement and supports repeated profiling tasks. The memory unit must be fully cooled before the next measurement.

The built-in thermocouple check function helps operators check thermocouple connections before measurement, supporting a smoother setup process and reducing avoidable measurement interruptions.

A built-in battery monitoring function helps operators check battery status. The system supports commonly available AAA battery types, subject to the manufacturer’s specifications.

Recorded temperature data can be transferred to a computer for analysis using the associated software. Malcom identifies the TMR-1 product page as the software download source for the Reflow Checker.

The RCX-1 platform can be expanded with optional modules for additional temperature channels, oxygen concentration monitoring, air velocity measurement, substrate vibration monitoring, camera-based observation, and wireless connectivity. These are configuration-dependent options and are not all included in the standard RCX-1 setup.

Optional Modules and Expansion Capabilities

RCX-T — Additional 6 Temperature Channels

Expands the system’s temperature measurement capacity from 6 to 12 points. The additional channels are useful for detailed profiling, trial production, and process evaluation.

RCX-O — Oxygen Concentration Monitor

Measures oxygen concentration at selected PCB locations under actual Reflow conditions. Available measurement ranges include 50–5,000 ppm and 1,000–10,000 ppm.

RCX-W — Air Velocity Monitor

Measures airflow velocity at selected PCB locations to help engineers investigate airflow conditions inside the Reflow Oven.

RCX-V — Substrate Vibration Monitor

Measures PCB vibration at two points to support investigation of board movement and potential soldering defects associated with vibration.

RCX-R — Wireless LAN Connection

Enables wireless communication for real-time temperature-profile monitoring on a PC and allows device settings to be adjusted while viewing the profile.

RCX-C — Observation Camera

Adds camera-based observation of the PCB during the process, helping engineers examine selected areas from different viewing angles.

The Malcom RCX-1 Reflow Checker can be used for the following process-engineering tasks:

• SMT Reflow Profiling: Measure and analyze PCB temperature profiles during soldering.
• Reflow Oven Setup: Evaluate thermal conditions when establishing or adjusting process parameters.
• Process Validation: Verify temperature behavior during production trials and process changes.
• Troubleshooting Soldering Defects: Investigate thermal conditions and, with suitable optional modules, other contributing process factors.
• Thermal Process Comparison: Store and compare profiles from repeated measurements.
• Production Process Monitoring: Support routine process checks and thermal-process consistency.
• Advanced Process Investigation: Use optional oxygen, airflow, vibration, or camera modules to study additional process variables.

SMT Reflow Profiler RCX-1

• More informed Reflow optimization: Recorded temperature data helps engineers evaluate process conditions rather than relying solely on Reflow Oven setpoints.
• Multi-point measurement: Monitoring several PCB locations helps identify differences in thermal behavior across the board.
• Repeatable process evaluation: Stored profiles make repeated measurements and comparisons easier.
• Flexible measurement settings: Adjustable sampling intervals support different profiling requirements.
• Expandable functionality: Optional modules allow the system to be adapted to more demanding process-investigation tasks.
• More efficient troubleshooting: Additional measurements can help engineers investigate potential causes of soldering defects.
• Reduced manual data handling: Onboard profile storage allows multiple measurements to be retained before transferring them to a computer.

These are practical uses of the documented capabilities, not guarantees of specific yield improvements or defect reductions.

PCB Temperature Profiler – SMT Reflow Profiler

The Malcom RCX-1 is a suitable option for electronics manufacturers that need more than a basic temperature logger. Its combination of six-point temperature measurement, adjustable sampling, onboard profile memory, and optional process-monitoring modules makes it adaptable to routine Reflow profiling and more detailed process investigations.

For production engineers, the key advantage is the ability to measure actual thermal conditions experienced by a PCB and use the recorded data to support process setup, validation, and troubleshooting. Its modular design also allows additional measurement capabilities to be introduced when process requirements become more complex.

The best configuration depends on the number of measurement points required, the production process being evaluated, and whether additional monitoring such as oxygen concentration, airflow, or vibration is needed.
