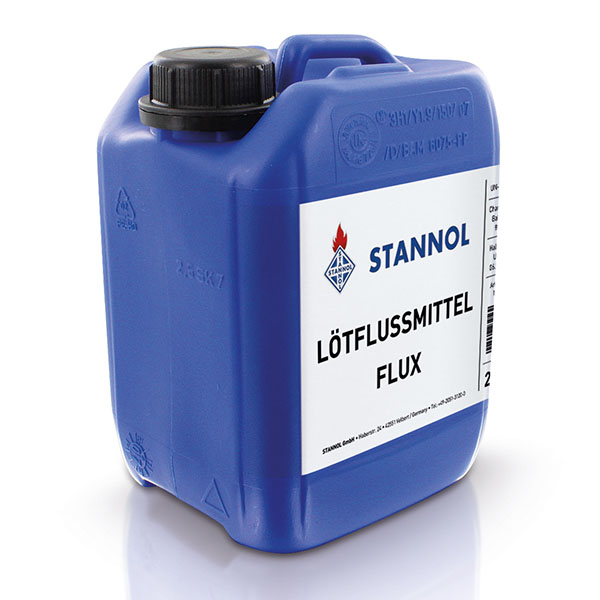

Flux EF350 Stannol 2.5 lit - No-clean

FLUX EF350 Stannol 2.5lit

2.5 Lit Flux

PRODUCT ADVANTAGES

Universally usable
High solid content – fast wetting
No-Clean
Electrically safe residues
Outstanding wetting characteristics
Made in Germany

Flux EF350 Stannol

Flux EF350 Stannol the halogen-free activated No-Clean Flux guarantees outstanding wetting capability on different surfaces (e.g. OSP, Ni/Au, HAL, chemical Sn and chemical Ag) both with lead-free and solder alloys containing lead. Special additives have been integrated in the formulation of the flux to meet the requirements for the solder behavior of the flux and the electrical safety of the circuit board.

APPLICATION

EF350 is a flux with a very large range of applications. It can be used universally very well. EF350 can be used well both for wave soldering as well as for selective soldering. EF350 is well suited for use in spray fluxers; use in foam fluxers is also possible. Due to its very good activity, the EF350 flux can also be used well for selective soldering.

Stannol EF350 offers the following advantages:

Multi-purpose application, low residues
Moderate solid content – fast wetting
No-clean application, electrically safe
Perfect wetting results with lead containing and lead-free alloys
Contains a UV-active fluorescence indicator

GENERAL PROPERTIES LIQUID FLUX EF35

Colour: light-yellow
Density at (20°C): 0.811 g/cm3
Flash point (closed crucible): 12°C
Ignition temperature: 425°C
Solid content: 3.5%
Acid rating: 27.0 mg KOH/g
Halide content: none
Copper mirror test: passed
Silver chromate paper test: passed
Surface Insulation Resistance: >108 Ω
Corrosion: none
Thinner Stannol VD-500
