Weller WXS2010 Soldering Station

WXS2010 Micro / Nano Soldering Station

WXS2010 Soldering Digital Soldering Station | Weller

The new Pico (Nano)/Micro Soldering tool has the fastest heat-up and recovery times of less than 3 seconds.
Automotive electronics manufacturing.
Repair of high-density electronics.
Professional PCB assembly.
SMD soldering and rework.

Weller WXS2010 Soldering Station

Weller WXS2010 Soldering Station featuring dual channels, smart temperature control, and ESD safety for precision electronics work.

Driving for efficiency, fast heat-up times
The new Pico (Nano)/Micro Soldering tool has the fastest heat-up and recovery times of less than 3 seconds. Excellent heat transfer and recovery time during the soldering process for a high performance and continuous workflow. The short tip-to-grip distance provides maximum precision during the soldering process.

Cost savings, 1 iron – fits 2 tip families
The kit includes 2 soldering tips, a pico tip for very small applications and a micro tip for standard applications. Both tip families fit to just one soldering handle. All you need is one soldering tool and one soldering station.

Full process control
Smart tips with a unique individual serial number, smart tools for data parameter storage and an intelligent station ensure full process control and full traceability of calibration history.

Safety & Ergonomics

ESD-safe design prevents damage to sensitive electronics. Comfortable, lightweight soldering iron for precision work, and Automatic standby and energy-saving features.

Dual Channel 300 W Station

Expandable up to 12 smart tools for future upgrades.
Color touch display for intuitive control.
Operate two tools simultaneously.

Ultra-Fast Heat-Up

Reaches working temperature in under 3 seconds for maximum productivity.
Excellent thermal recovery ensures consistent quality solder joints.

Pico and Micro Capability in One Tool

One soldering iron compatible with both Pico (0.4 × 0.2 mm) and Micro (1.3 × 0.4 mm) soldering tips.
Saves investment costs and tool change time.

Features

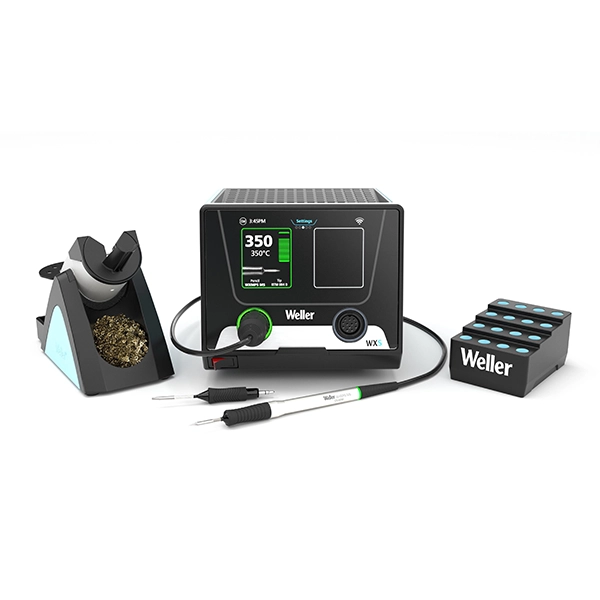

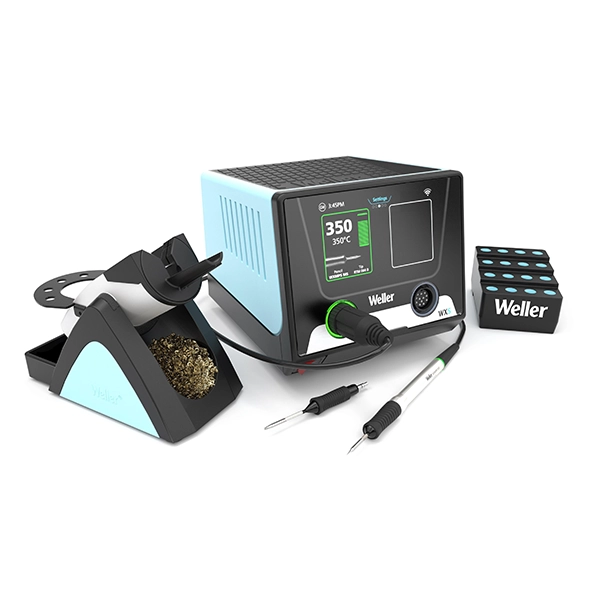

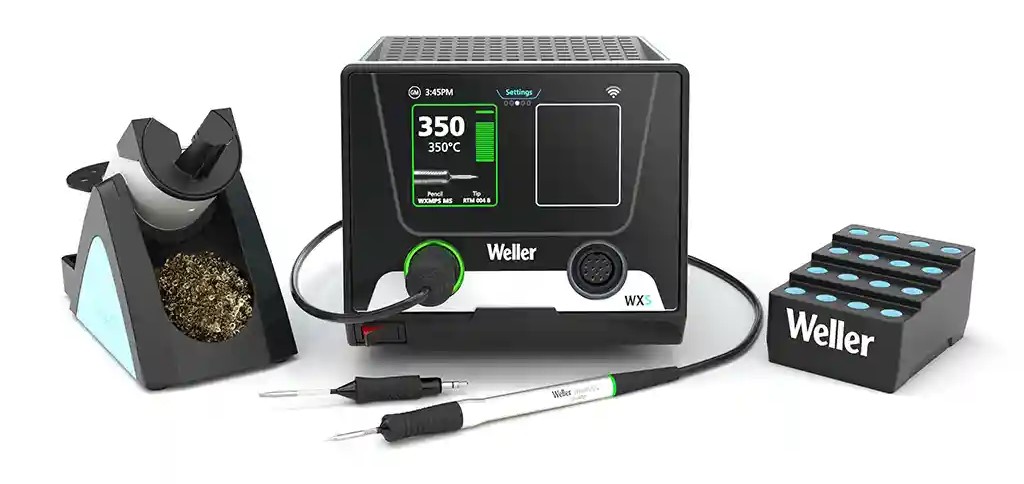

Weller WXS2010 Soldering Station

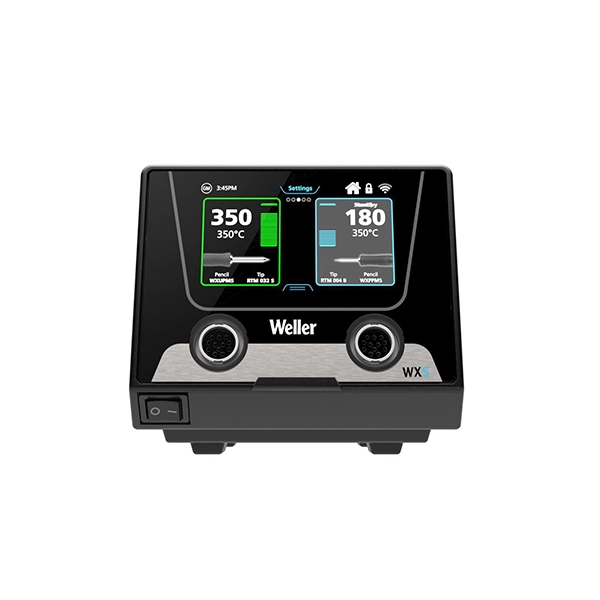

WXsmart dual-channel station

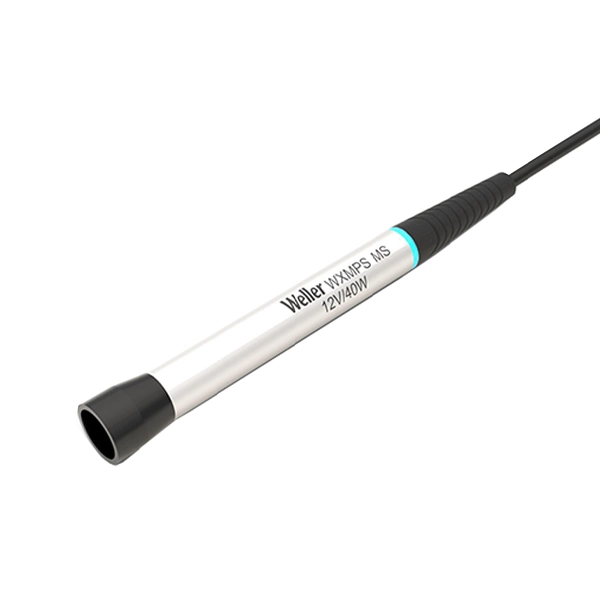

WXMPS MS 40 W Pico/Micro soldering iron

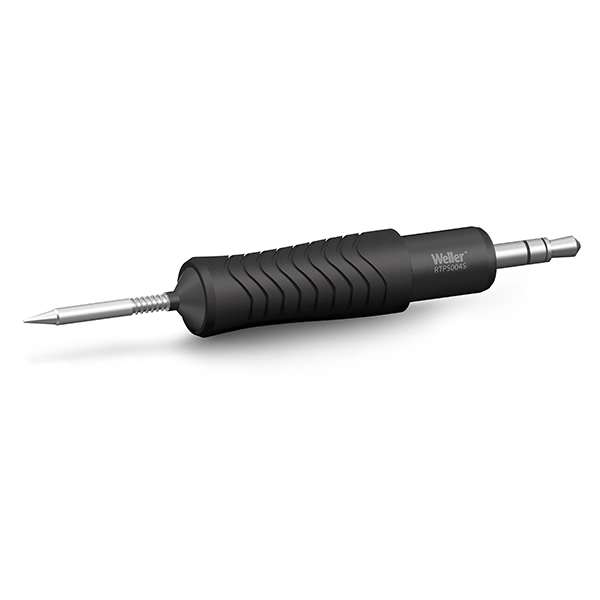

RTPS 004 S MS Pico tip (0.4 × 0.2 mm)

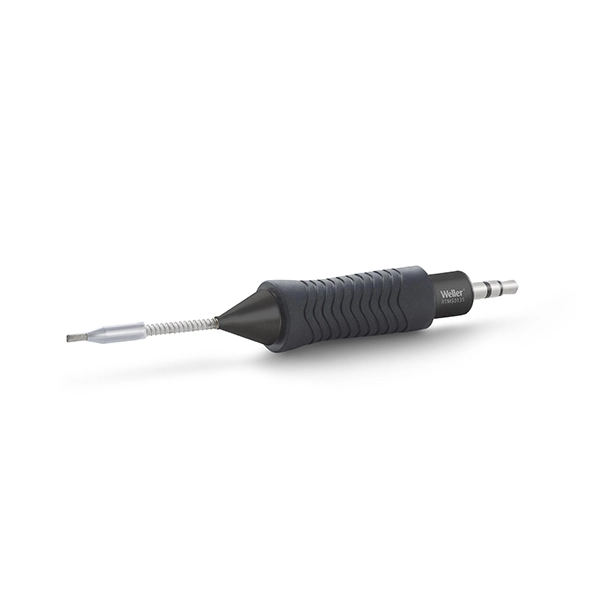

RTMS 013 S MS Micro tip (1.3 × 0.4 mm)

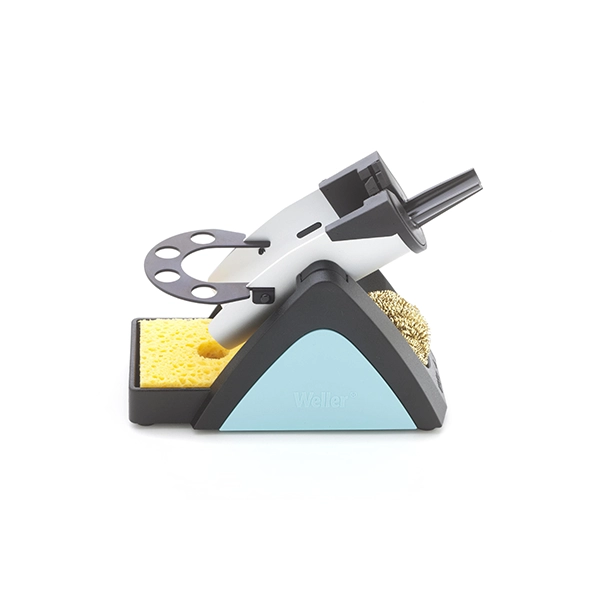

WSR 200 safety rest

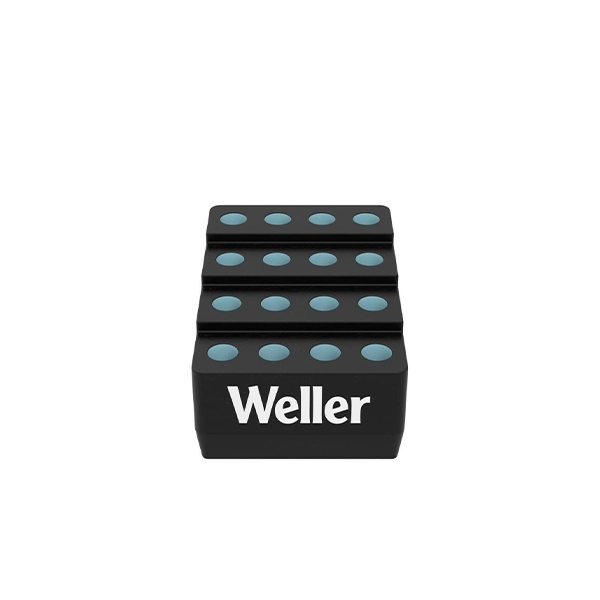

WCTH tip holder

High-precision PCB soldering.

Soldering medical devices.

BGA rework.

Technical Data

Dimensions L x W x H	6.90 x 6.06 x 5.70 in 175 x 154 x 144 mm
ESD Safe	Yes
Fuse	100 V / T6,3A
Power	300 W
Temperature Accuracy °C	± 9°C
Temperature Accuracy °F	± 17°F
Temperature Range °C	100 – 450 (550) °C
Temperature Range °F	200 – 850 (950) °F
UPC	037103375353
Voltage	120 V
Product Family	WXS Line Soldering Stations
