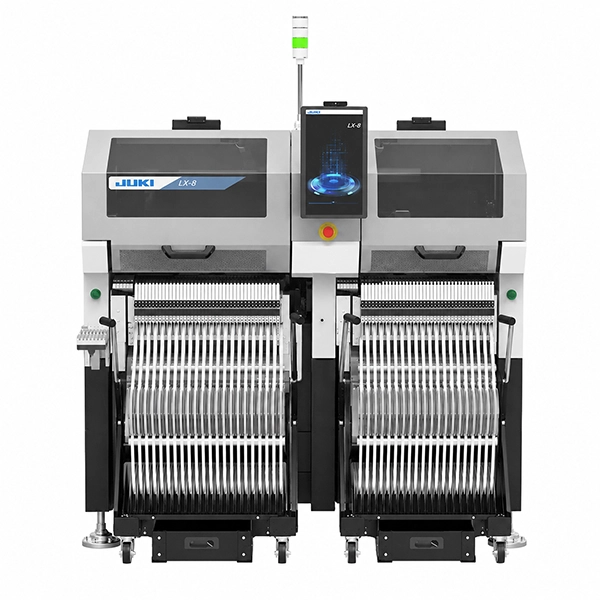

JUKI SMT LX-8 Pick and Place Machine
JUKI SMT LX-8 Advanced Flexible Mounter | Pick and Place Machine
- its two P20S 20 nozzle planet heads, it reaches unprecedented speeds of up to 105,000 CPH – making it the fastest machine in its class.
- Achieves high-e ciency production through high area productivity and ultra-high speed equipment of the highest level in its class.
- Juki SMT LX-8 still maintains an impressive accuracy rate of ±40 μm (Cpk ≥1), ensuring precision and quality with each placement.
JUKI SMT LX-8 Pick and Place Machine
JUKI’s LX-8 is the ultimate solution for any production line
- It boasts the highest 105,000CPH and is equipped with ultra-high speed, space-saving features, while boasting high area productivity and achieving highly efficient production.
- Achieves high- eciency production through high area productivity and ultra-high speed equipment of the highest level in its class.
In addition, even large components and other highly versatile design heads can be equipped with ultra-high speed 94,000CPH that are among the highest in their.
P20S head/design head, selectable for each characteristic
P20S has a planet-head construction that sucks continuously with 20 nozzles. Even a tiny part of 201 achieves stable suction reliability. In addition, the head height is variable (0.5 mm /2 mm/3 mm) according to the component to achieve high-speed mounting in order to mount the component at the highest speed
Balanced specifications that combine high-speed and versatility
All-round variate production line
Ultra-high-speed and high-density mounting specifications
Flexible response to sudden changes in production items by replacing the head. Achieves optimal throughput independent of the type of components on the board.
With P20S head, it is possible to detect the reversal of the front and back sides, inspect the tip standing, and detect the presence or absence of components. Realizes high-quality mounting of extremely small parts.
Low impact feature allows separately adjusting the down and up speed of the nozzle during placement. This minimizes the load on the part and on the board during placement. This is optimal for placing very small parts that require a lot of accuracy
A smartphone-like operating feel that can be operated with intuition, color-conscious for all users and easy-to-view screens in dark themes, and high-priority functions have been placed on the top screen.
This is a new type of operation panel that pursues ease of use.
The head of LX-8 can be easily replaced in a short time .By simply placing the heads optimally without changing the line layout, the machine can flexibly respond to variable and variable-quantity production
JUKI LX-8 is a game-changer in the world of SMT placement machines
- UKI’s LX-8 is the ultimate solution for any production line. With its cutting-edge technology and versatility, it allows users to choose between the P20 rotary planet head and the Takumi Head with adjustable head height for precise placement.
- Despite this incredible speed, the LX-8 still maintains an impressive accuracy rate of ±40 μm (Cpk ≥1), ensuring precision and quality with each placement.
- LX-8 machine’s advanced features enable users to work on complex projects with ease while also maximizing efficiency in quick production runs.
- JUKI’s SMT LX-8 is the perfect partner for any manufacturing setup looking to streamline their processes and boost productivity.
|
LX-8 |
|||||||
| P20Sx2 | P20SxTakumi | TakumixTakumi | |||||
| Board size | Single clamping | 50×50 ～ 410×400 mm /500 mm | |||||
| Double clamping | 50×50 ～ 810×400 mm /500 mm | ||||||
| Component height | 3 mm | 25 mm | |||||
| Component size | Maximum | 0201 | 03015 | ||||
| Minimum | 5 mm | 65 mm /10 mm x90 mm /50 mm xœ5 mm | |||||
| Placement size (optimum) | 105,000CPH | 99,500CPH | 94,000CPH | ||||
| Feeder capacity | Tape | Max. 160*⁴ | |||||
| Tray | – | Max. 30 | Max. 60 | ||||
| Power | 3-phase AC200V, 220V~430V*⁵ | ||||||
| Apparent power | 2.49 kVA | ||||||
| Operating air pressure | 0.5±0.05MPa | ||||||
| Air consumption (standard) | 50L /min (ANR) | ||||||
| Machine dimensions (WxDxH) | 1,600 mm x1,800 mm x1,440 mm | ||||||
| Mass (approximately) | 2,500kg | ||||||
