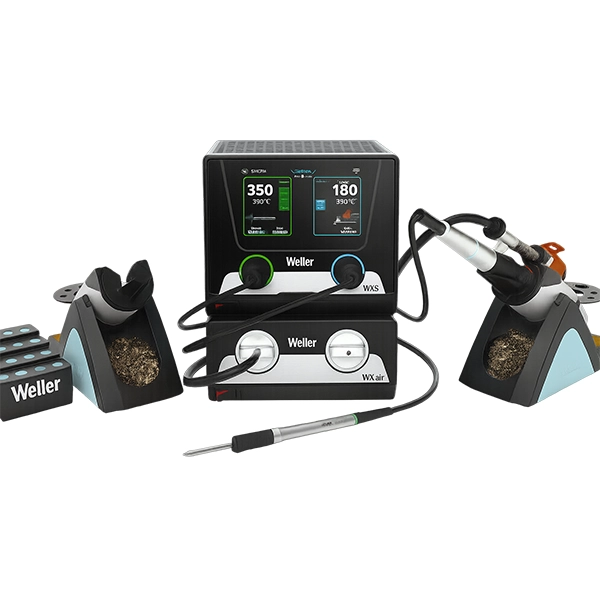

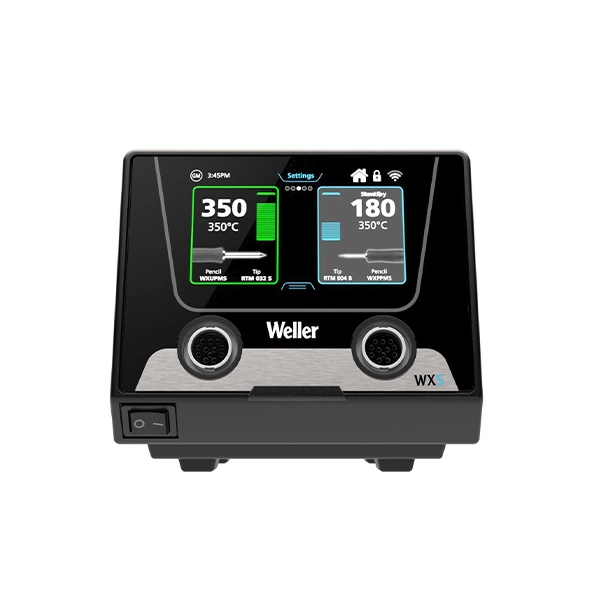

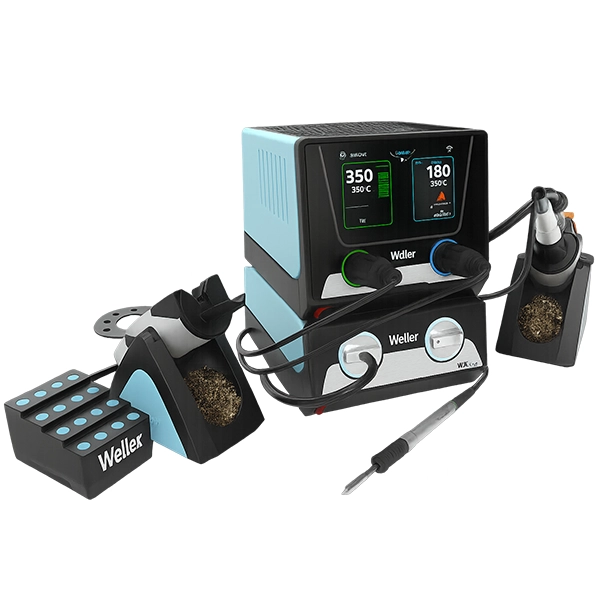

Weller WXS2020 – Rework Soldering Station

Driving for efficiency, fast heat-up times
Weller’s active tip technology (cartridge) provide an optimized heat transfer with 150 W maximum power, 24 V performance. The extremely fast 7-second heat-up time delivers excellent heat transfer and recovery time during the soldering process for a high-performance continuous workflow.

Perfect for heavy-duty soldering applications

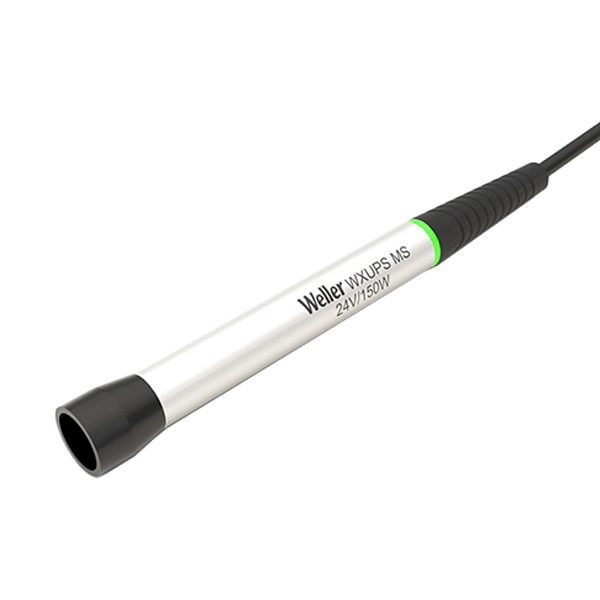

The WXUPS uses Thermal Core Technology for optimized heat transfer through the joint, with 150W performance for maximum power. It covers heavy-duty applications with large component sizes from 1612 and bigger.

Full process control
Smart tips with a unique individual serial number, smart tools for data parameter storage and an intelligent station ensure full process control and full traceability of calibration history.

Full Process Control and Traceability

Stores calibration data, temperature profiles, and parameters in the tip and station itself. Can connect to Weller software for data management and quality traceability.

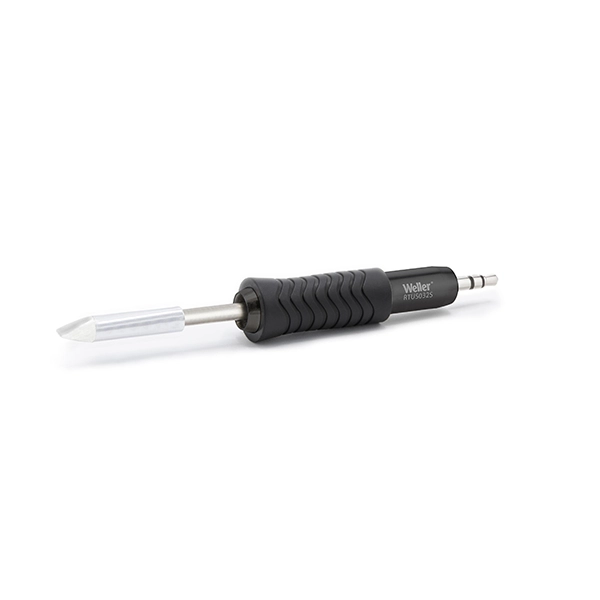

• Tips are cartridge-style (tip and heater integrated into one piece).
• Delivers very fast and uniform heat transfer to the joint.
• Quick tip change without additional tools.
• Higher precision in temperature control.

• Heavy electrical and electronic connections.
• Soldering large-size SMD components.
• Industrial electronics manufacturing.
• High-power LED soldering.
• Repair of multilayer PCBs.
