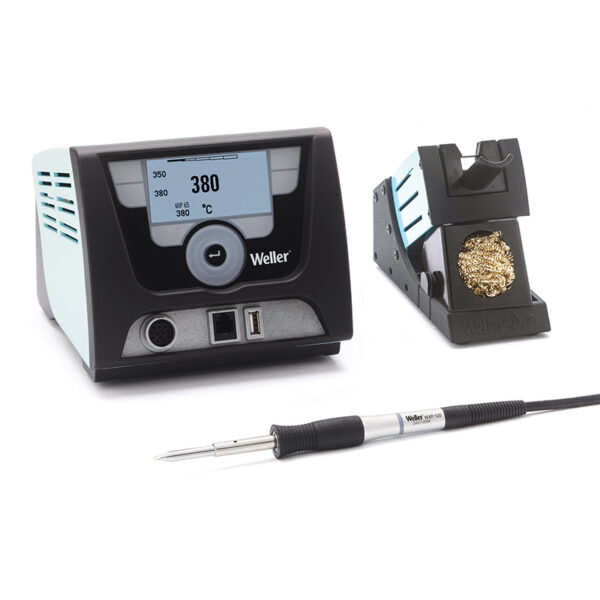

WX 1010 Set Soldering Station – 120 W

wx1010

Power unit WX 1

• Innovative operation concept
• Robust touch screen with ESD safe glas
• Intuitive use with turn-click-wheel with enter key and finger guide.
• Blue LED backlighting
• Multilingual menu navigation
• High functionality
• No safety rest with Stop & Go function needed thanks to integrated acceleration sensor
• Optimized precision, better stability by sensor in the soldering iron
• Specific parameterization of tool by storgage medium in hand piec.
• Visual process control via blue LED ring light
• All WX tools connectable

Technical Data
	This station is ESD safe.
Dimensions L x W x H:	170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch)
Weight:	approx. 3,2 kg
Channels:	1
Power supply:	230 V, 50 Hz
Power consumption:	200 W
Protection class:	I
Temperature range:	Adjustable from 50°C – 550°C (150°F – 999°C) Adjustable temperature range varies among tools
Temperature accuracy:	± 9°C (± 17°F)
Temperature stability:	± 2°C (± 4°F)
Equipotential bonding:	Via 3,5 mm pawl socket on back of device
Material touch panel:	Made of antistatic coated material
Dimensions touch panel:	74 x 38 mm
Resolution:	255 x 127 (128) dots
Display backlighting:	4 LEDs
Equipotentional bonding:	The 3,5 mm switch offers four different options: a) Hard grounded without plug (original delivery) b) Equipotential bonding: with plug, compensation line on center contact c) Potential free: with plug d) Soft grounded: with plug and soldered resistor grounded via selected resistor
USB interface:	USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
