Zero Smog 4V Kit 2 Funnel Nozzles Volume Extraction

Weller Zero Smog 4V Kit

• The Zero Smog 4V Kit with 2 Funnel Nozzles is a high-performance fume extraction system designed for professional soldering, electronics assembly, and sensitive industrial environments. Engineered for efficient volume extraction, this model supports two workstations simultaneously, providing clean and safe air in production lines, repair centers, laboratories, and R&D facilities.
• Its brushless turbine, low-noise performance, multi-stage filtration, and long service life make it a preferred choice for ESD-safe and industrial environments where reliability and air quality matter.

Weller Zero Smog 4V Kit 2 Funnles – Solder fume extractor

Advanced Filtration System

This model features a three-stage filtration system for maximum protection:

• Pre-Filter (F7): Captures coarse particles and increases the lifespan of the main filter
• HEPA H13 Filter: Removes 99.95% of particles down to 0.3 microns
• Activated Carbon Filter: Absorbs gases, odors, chemical vapors, and VOCs

Together, these ensure a clean, safe, and odor-free working environment.

Volume extraction system

• Manual soldering and PCB repair
• SMT & THT assembly lines
• Rework and electronics production
• R&D and engineering laboratories
• Training centers and workshops
• Fume extraction for adhesives

SMT soldering fume filter

• Optimized for volume extraction—ideal for larger fume-intensive areas
• Supports two operators at the same time with dual funnel nozzles
• High-efficiency brushless motor ensuring long operational lifetime
• Constant airflow control for stable and consistent suction
• Low noise level, suitable for production floors and repair labs
• Compatible with soldering, rework, electronics repair, and sensitive processes
• Energy-efficient design reduces power consumption and maintenance cost

Electronics fume extractor – Weller Zero Smog 4V Kit

• Fume Extraction Unit suitable for applications such as hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK and VOC
• Mobile fume extraction unit, extracts contaminants at up to 4 workplaces
• Equipped with a F7 fine dust pre-filter and a Compact filter consisting of: Particle filter H13 and wide band gas filter
  (50 % active carbon / 50 % Chemisorb)
• Constant Flow Control (CFC) guarantees automatic air flow regulation for each working place independent of the connected workplaces, at the same time avoiding unnecessary waste of suction power and saving energy
• Electronic filter control with optical and acoustic filter alarm enables efficient filter performance monitoring
• A powerful, maintenance-free turbine provides continuous fume extraction
• Designed to be used as a small central system: the different kit options are supplied complete with a flexible hose, arms and brackets (depending on the kit version), ready for installation at the workplace

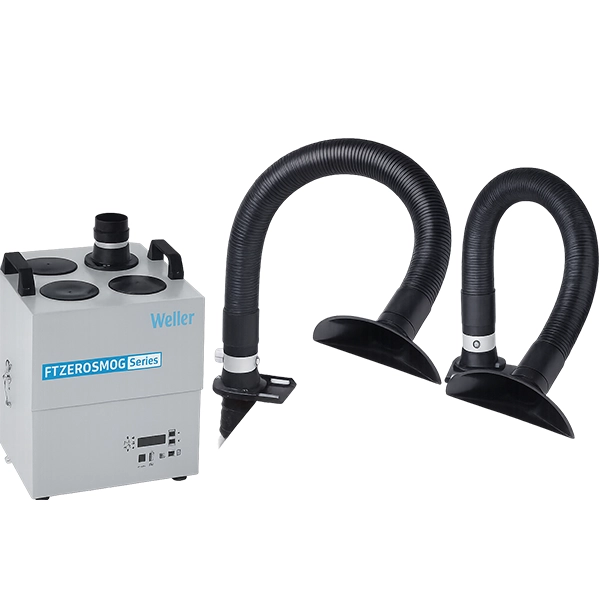

• Kit for 2 operators, including: 2 ALFA funnel nozzles, 2 extraction arms, 2 stop valves with bench mounting brackets, and 2 extraction hoses
• Maximum smoke exhaust 230 m3/h
