Anti-Static Heel Strap
ESD | Anti-Static Heel Strap
- Static sensitive components can be damaged by being handled while you are not properly grounded.
- The heel strap is black conductive on the outside and white on the inside to avoid any shoe marking.
- For complete anti-static protection, two anti-static heel straps are recommended.
- Premium, durable ESD heel straps designed to be worn in an ESD working area.
- One ESD heel strap should be worn on each foot.
- Resistivity: 1 to 2 megaohms.
- Dual layered heel cup.
Anti Static Heel Strap
Esd Heel Straps – Anti Static

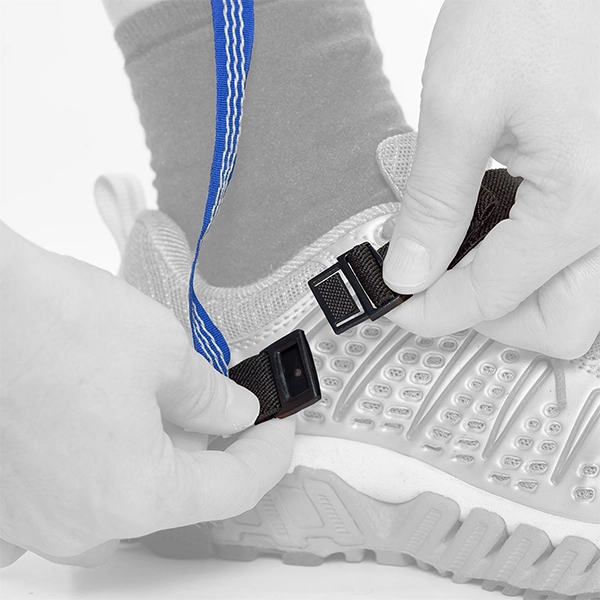

Static sensitive components can be damaged by being handled while you are not properly grounded can be used together with special conductive floor tile as part of a comprehensive anti-static program. ESD heel straps allow freedom of movement around the shop environment without the restriction of a wrist strap ground cord leashing you to a bench. For complete anti-static protection, two anti-static heel straps are recommended. One ESD heel strap should be worn on each foot. Velcro straps are pulled over the top of the foot to secure the anti-static heel strap in place. The nylon ribbon should be tucked into your sock or into your shoe. The nylon ribbon should make contact with skin, or at minimum, with the sweaty moisture in your shoe in order to provide a path to ground for the static electricity.
ESD grounding wrist strap
Premium, durable ESD heel straps designed to be worn in an ESD working area. Our premium ESD heel straps are quick and easy to use and can be adjusted with the hook and loop fastener (D-ring). The heel strap is black conductive on the outside and white on the inside to avoid any shoe marking. Re-usable and designed to be long-lasting. ESD heel straps are available in standard and extra large sizes. The extra large heel strap has a plastic connector. The heel straps can be used in combination with all grounded ESD flooring and matting. All ESD heel straps incorporate a 1 Meg Ohm safety resistor and are made with a soft 2-layer rubber material. Hook loop tape’s coloures are available on request.
🔹 Technical Specifications
Industrial ESD safety equipment
- Product Name: ESD Heel Strap
- Application: SMT, PCB Assembly, Electronics Manufacturing
- Connection Type: Ground via ESD flooring or grounding cord
- Strap Material: Conductive woven fabric
- Resistance: 1MΩ ±10%
- Adjustable: Yes
Heel Strap vs Wrist Strap
ESD Wrist Strap:
Best for seated operators connected directly to a grounding point on an ESD workstation.
ESD Heel Strap (Foot Grounder):
Ideal for operators who move around production areas. Works in combination with ESD flooring to maintain continuous grounding.
🔹 Features
ESD grounding strap
All ESD heel straps are produced using a soft 2-layer rubber material.
White rubber surface conductivity: 1 x 10^(12) ohms.
Conductive tab conductivity: 160 ohms/inch (max).
Black rubber surface conductivity: 8 x 10^(4) ohms.
Metal film resistor conductivity: 1 meg ohm + 20%.
Provides static protection on conductive floor tile
Plastic parts: Made of antistatic nylon material.
Markings: With Killstat logo and date code.
Velcro adjustable to fit all adult shoe sizes.
Extra large size has a plastic connector.
One anti-static heel strap per package
Size options: Standard or extra-large.
Decay time: 0.1 second.
🔹 Why ESD Protection Matters?
SMT anti-static strap
Even low levels of static discharge — often undetectable by humans — can permanently damage sensitive electronic components. Using a certified ESD grounding strap reduces hidden defects, improves product reliability, and protects your production line from costly failures.
- Industrial-grade quality
- Long service life and reusable design
- Reliable performance in high-volume SMT factories
| Parameter | Specification |
| Product Name | ESD Heel Strap |
| Function | Continuous electrostatic discharge to ground |
| Resistance | 1MΩ ±10% (Safety Resistor) |
| Strap Material | Conductive woven fabric |
| Conductive Ribbon | Blue conductive grounding tape |
| Color | Black strap + Blue ribbon |
| Adjustable | Yes |
| Application Area | SMT, PCB Assembly, Electronics Manufacturing |
| Reusable | Yes |
| Brand | ESD Safety |
|---|
