Zero Smog TL Kit 2 FN

Weller Zero Smog TL Kit 2 FN:

Fume extraction unit for 1 to 2 workplaces

Fine dust pre-filter F7, can be separately changed, without having to change the main filter

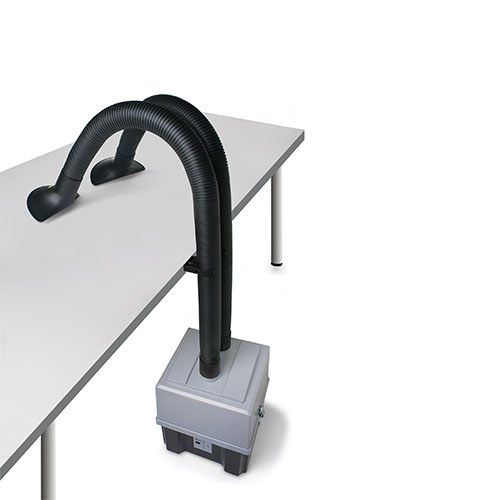

Fume extraction unit with 2 flexible extraction arms, 2 fixing clamps for the arms, a remote switch and 2 funnel nozzles

Granular activated carbon filter for effective gas filtration

Portable fume extraction unit, for placement under or next to the bench

Quick and easy filter replacement

Longer service life due to exceptionally large filter surface of 2,4m²

Variable speed setting

Automated filter change notification system

Exceptionally long service life due to maintenance free brushless EC turbine

Quick, simple and user-friendly installation with Easy-Click System

Weller Zero Smog TL Kit 2 FN

Dimensions W x D x H (mm)	355 x 333 x 455
Voltage	220-240 V (50/60 Hz)
Heating output	120 W
Noise level (distance 1 m) dB(A)	< 50
Dimensions W x D x H (inch)	13.976 x 13.110 x 17.913
Weight (ca) in kg	9
Max. capacity	1-2 workplaces
Pre filter	Fine dust pre-filter F7
Compact filter	Particle filter H13 and granular activated carbon filter
Capacity m³/h	190
WX compatible	Yes
Fuse	1,25A
WT compatible	Yes
Max Turbine Vacuum (Pa)	3000
