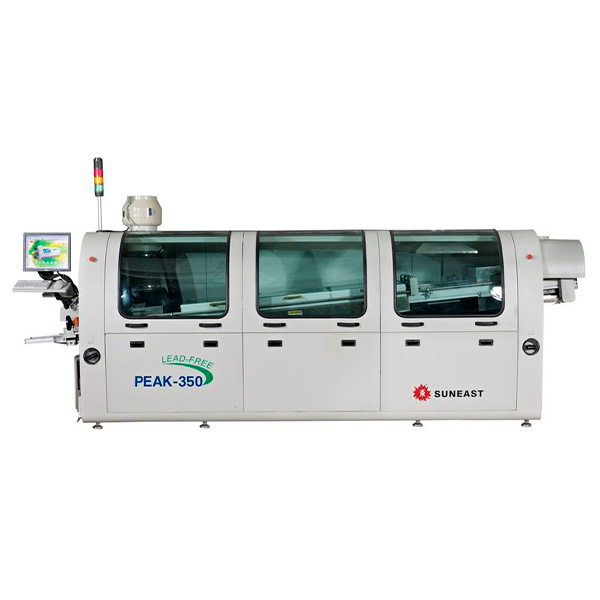

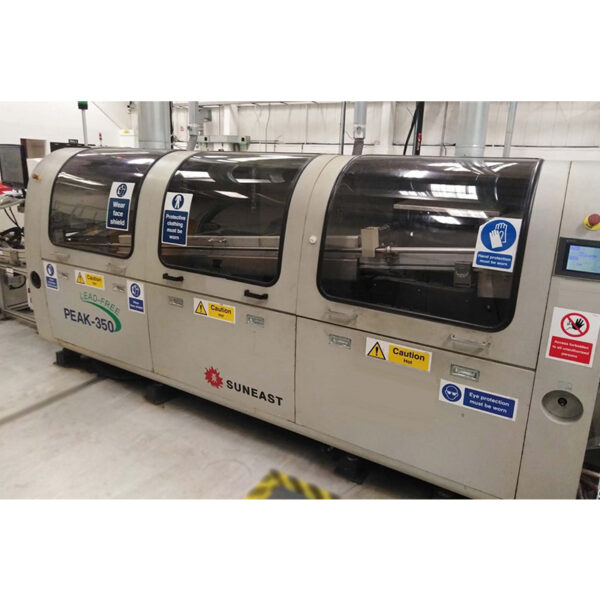

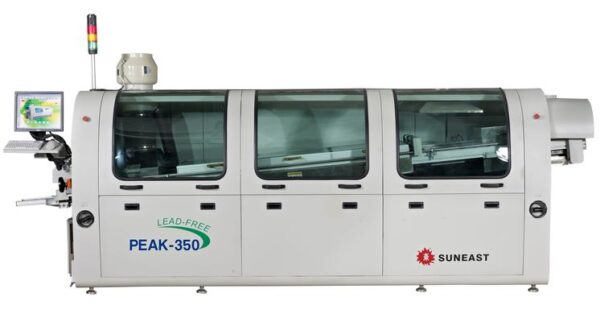

Peak 350

1. Buffer conveyor Linkage PCB loading mode with aluminum rail & stainless steel chain
2. Conveyor system
The conveyor system is equipped with new-type titanium double hook finger and aluminum alloy rail which prevents rail from
distorting; PCB width adjusts manually, equipped with width digital display; conveying angle adjustable, equipped with angle
meter of digital display, conveying speed adopts inverter control with step less adjustment.

1. Solder pot system
Apply tailor-made cast iron material to solder pot inner body; surface is with corrosion preventive treatment. Linkage motor
driving wave, speed adjusted by inverter, solder dross flow and oxide reducing equipment, manual/automotive methods for
controlling pot in/out & up/down, outer heating unit, PID temperature control method and lower-liquid-level alarm.
2. Spray flux system5. Preheating system
3. Cooling system
Upper and lower forcible air cooling system
4. Finger cleaning unit
Special hair brush for cleaning
5. Control system

Technical Data

–PCB size: 50~350mm（W）*120mm（H）
–Component height：750±20mm
–Conveying speed: 500~1800mm/Min.
–Conveying angle: 4~7º
–Conveying direction: from left to right
–Fluxer capacity: Approx.18L
–Spraying air exhaust: Approx.30m3/min.
–Compressed air: 4~6Bar. 100L/min.
–Preheating temperature: Max.200℃
–Temperature of solder pot: Max.300℃
–Capacity of solder pot: Approx.500Kg
–Height of wave: Approx.12mm–Dimension: 3600（L）*1400（W）*1700（H）mm
–Net weight: Approx.1500Kg
–Power supply: three phase 380V 50Hz
–Power consumption: Approx.30KW
–Running power: Approx.8.5KW
