ALPHA workbenches |ESD workbenches |Anti static ergonomic workbenches

ALPHA workbenches

Alpha series workbenches were designed as a space-saving extension of Alliance series product line. Stylish and ergonomic workbenches can perfectly equip unspecified technical premises and educational facilities. Alpha series workbenches are distinguished by practical modular construction and compact size; they allow effective use of hall space.

We offer 2 models of Alpha series workbenches: single workbench and mirror-located double workbench.

Code	Size
ALF-12-7	1200х700 mm
ALF-15-7	1500х700 mm
ALF-18-7	1800х700 mm
ALF-O-12-7	2 *(1200х700) mm
ALF-O-15-7	2* (1500х700) mm
ALF-O-18-7	2* (1800х700) mm

ALPHA workbenches

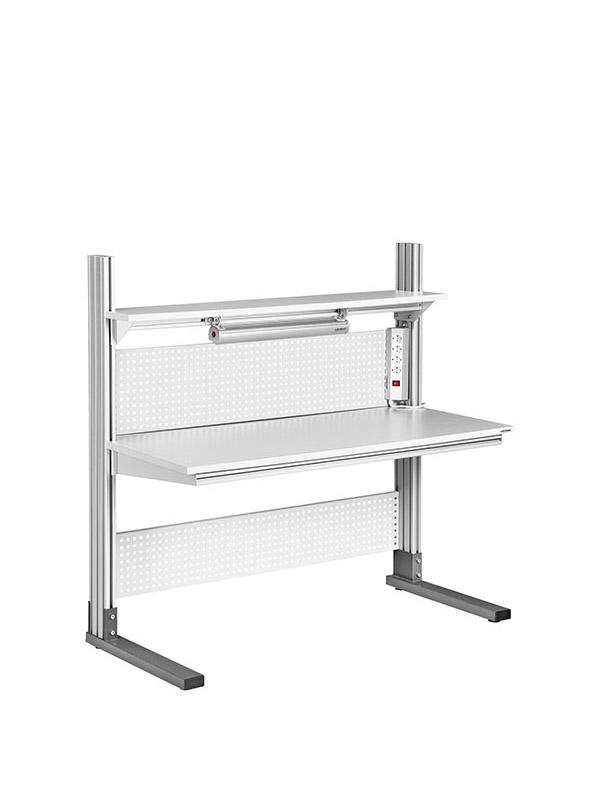

ALF Single workbench

This comfortable workbench is perfect for small premises which require space-saving equipment. It is recommended for office and engineering personnel, also used for training and educational premises.
Workbench is supplied in a set with 2 perforated panels.

Adjustable tabletop height
Workplace height: 1500 mm
Load capacity: 200 kg

ALF-O Double workbench

Double workbench with 2 mirror located tabletops, helps to save space and reduce costs. Workbench is supplied in a set with 2 double perforated panels and 2 tabletops.

Adjustable tabletop height
Workplace height: 1500 mm
Each tabletop load capacity: 200 kg

ALF-EPA Power panel

Basic configuration consists of 4 sockets in an aluminium case with protective contact and 3 m cable. Can be equipped with additional sockets, fuses, phone jacks and earth leakage circuit breakers.

Nominal load capacity: 10 A

ALF-O-EPA Double power panel

Basic configuration consists of 2 aluminium cases with 4 sockets with protective contact and 3 m cable each. Can be equipped with additional sockets, fuses, phone jacks and earth leakage circuit breakers.

Nominal load capacity: 10 A

ALF-EPA/B Side power panel

4 sockets with protective contact and 3 m cable in a small aluminium case. Side power panel can be mounted either on any part of lateral aluminium frame. No extension possible.

Nominal load capacity: 10 A

ALF-PO Main shelf

Main shelf for Alpha series single workbenches.

30 cm depth
Load capacity: 70 kg
Height adjustment: 1200 – 1500 mm.

ALF-O-PO Double main shelf

Main shelf for Alpha series double workbenches.

30 cm depth from each side
Load capacity: 150 kg
Height adjustment: 1200 – 1500 mm.

Under-shelf local lighting DL/N

Additional local LED lighting can be mounted to any workbench series Main shelf and Perforated panel

2 versions: 60 cm length and 90 cm length
Angle adjustment 120˚

Optional drawer units

Storage solution for tools and components, no place on floor required.

New items – suspended drawer units TP-10/P and TP-20/P with reduced to 490 mm depth. It allows installing various additional equipment under a tabletop.

Dimensions:
